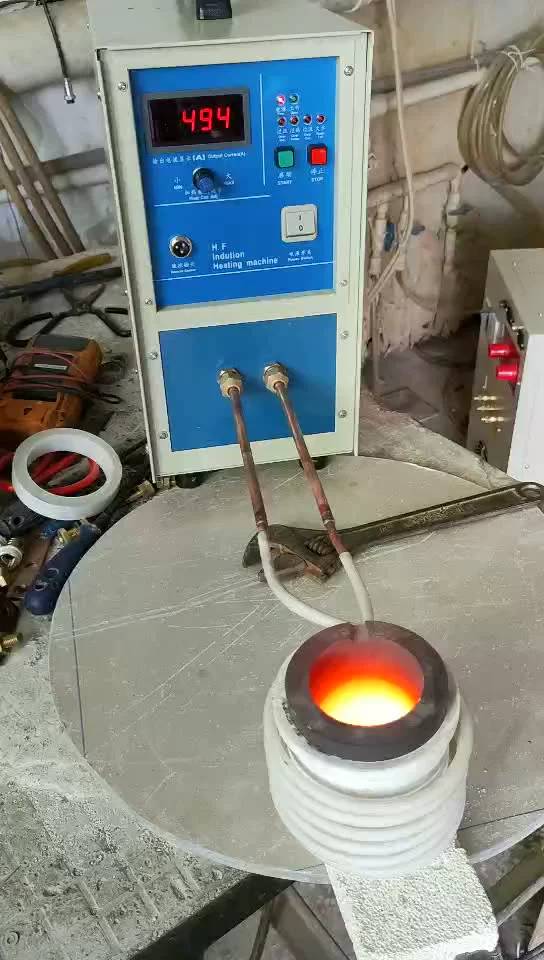

15KW Induction Heater Induction Heating Machine 220V Metal Smelting Furnace High Frequency Welding Metal Quenching Equipment

15KW Induction Heater Induction Heating Machine 220V Metal Smelting Furnace High Frequency Welding Metal Quenching Equipment Note: In the process of product upgrade, the appearance will be slightly changed, We will default to send the latest version, thank you~ Instructions: The machine needs to dissipate heat through water. The simple method is: water pump water tank (please prepare them by yourself); stainless steel water pump is recommended for the water pump. Please purchase a 100-200L capacity for the water tank nearby; it can also be equipped with a 1P chiller Specification: Name: High Frequency Induction Heater Model: HF-15 Voltage: 220V Maximum power: 7KW Frequency: 30-100KHZ Cooling water pressure: >0.2MPa 2-5L/Min Inlet water temperature: <40¡æ Net weight: 21KG Machine size: 460*200*385mm Applications: Welding, hot forging, hot fitting, quenching, melting, etc Features: 1. All solid state, using power device MOSFET, automatic frequency tracking 2. High frequency, fast heating speed, more energy saving 3. Safe and durable, adjustable and easy to operate For Metal Rebar Annealing application Item specification Model Number HF-15 Item Capacity 15KVA Voltage Input 220V single phase Voltage range 220-240V 50/60HZ Input Current 35A Working Frequency 30-100K HZ Cooling Water request 0.2Mpa 2-5L/min Duty Cycle 80% direct current 200-600A Dimension 480*190*460mm Gross Weight 28Kgs Accessories 1foot pedal switch and Coil inductor based on your request Description and Advantages: 1 ¡¢Adopts the latest MOSPET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power 2 ¡¢With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products 3 ¡¢Power consumption is half of traditional electron tube high frequency induction heating equipments under same conditions 4¡¢ With 100% load design, can work in 24 hours without stop. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality and simplify manual operation 5 ¡¢With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batched and repeated heating situations 6 ¡¢With multiple status display of overflow, overvoltage, low water, phase failure and load Inquiry NowPlease enable JavaScript in your browser to complete this form.Please enable JavaScript in your browser to complete this form.Name *Email *CompanyPhone Layout Company Submit ProductSubmitSubmit
