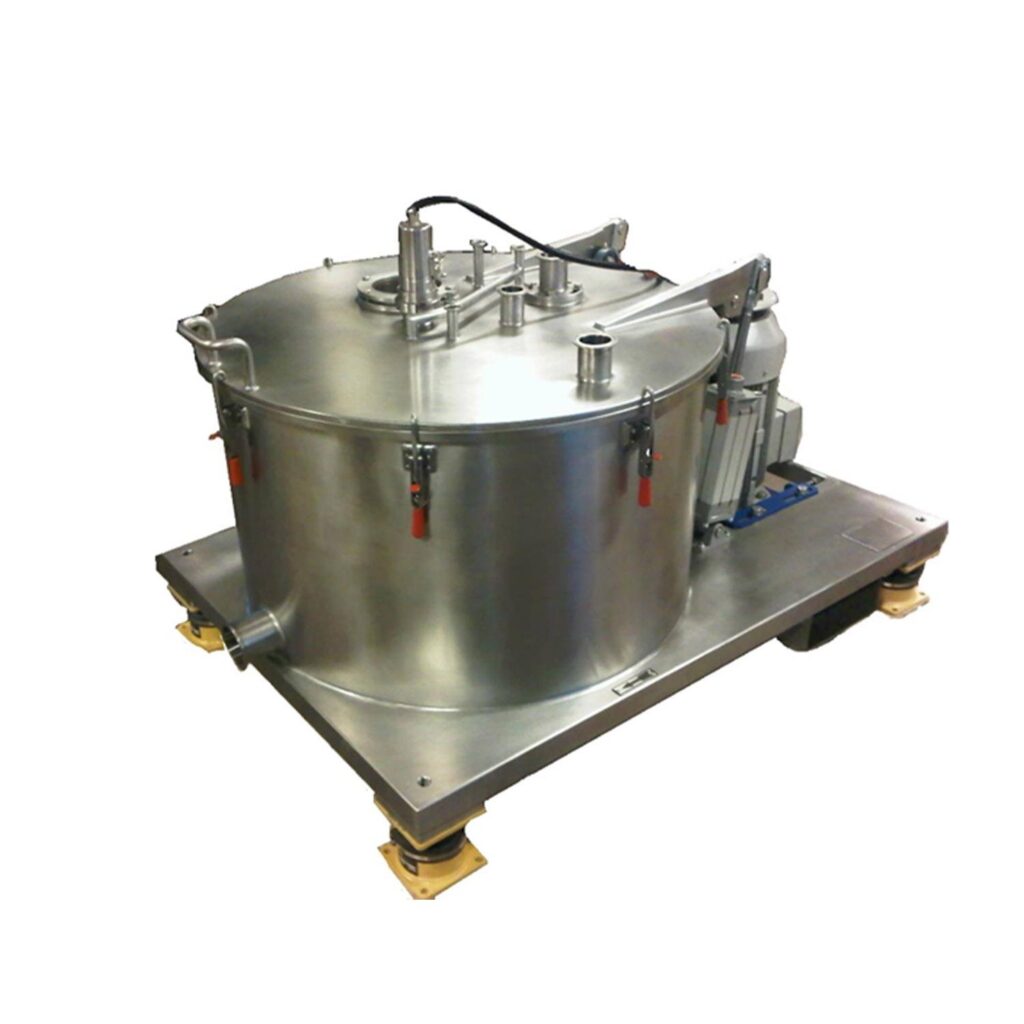

Heinkel CX-70 Ethanol Extraction Centrifuge

DescriptionSolids Material per batch (lbs)60 – 70 (27 – 32 kg)Estimated batch run time (mins)20 – 25Ethanol usage per run (gallons)60 – 70 (227 – 265 liters)Centrifuge speed (RPM)0 – 1400 vai simple frequency driveGravitational force691 G’sEstimated weight (lbs)Approx. 1200 (545 kg)Operating temperature (C)-40 to 30 (-40 to 86F)Max noise level (dBa)< 80Drive Motor (HP)7 HP UL listed 230 volts, 60Hz, 3-Phase inverter duty, explosion proof, C1D2 groups C&DCentrifuge & HMIRated for class 1 div. 2 installation areaPLC/VFD control cabinetRated for safe area installationEstimated ethanol removal post run95 – 97%Foot print with lid closed34.5” W x 57” L x 52” HFoot print with lid open34.5” W x 57” L x 75” H97% alcohol removal-40°C operationBatch time: 20 min per batch, 210 lbs/hr.simple frequency drive for short acceleration and braking timesBi-directional agitationEasy material loading and unloadingDigital HMI interfaceHeavy-duty spin-drying for maximum ethanol removalInsulating jacketDesigned for Class 1 Div. 2, Groups C&DUL or ATEX approved electric components316L stainless steel constructionMeets cGMP and Pharmaceutical standardsNo foundation requiredTop lid locking systemVibration / unbalance monitoring systemClosed-loop mechanical seal system with visual sight view and flow level detection
