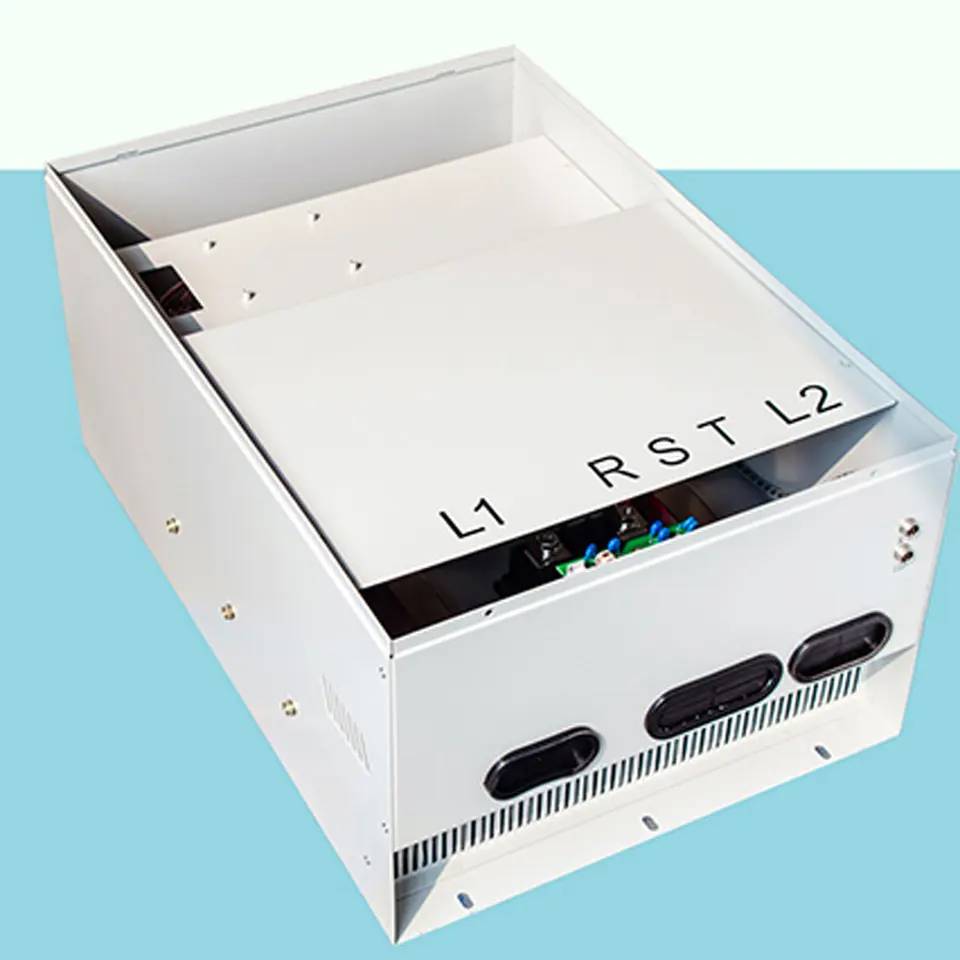

100kw Electromagnetic Heater, High-Frequency Induction Heating Machine

Flameless 1000W Magnetic Induction Heater with 8 Coils 2 Wires Kits Car Repair Tool Bolt Remover Mini Induction Heater EU PlugUSD 150.99-212.99/piece Plastic Machine Manufacturer Supply 220V 6KW Induction Heating Machine For Plastic MoldingUSD 384.84/piece 3Kw 220V Electromagnetic Induction Heaters for Plastic Film MachineUSD 213.84/piece 10KW 10000W 3 phase 380V Industrial Electromagnetic Induction Heater with temperature meter for Plastic Processing MachineryUSD 586.00/piece     Technical Parameters:   Item Technical Parameters rated power Three-phase 100KW Rated input current 120-150(A) Rated output current 240-260(A) Rated voltage frequency AC 380V/50Hz Voltage adaptation range  constant power output at 300 ~ 400V Adapt to ambient temperature -20?C~50?C Adapt to environmental humidity ¡Ü95% Power adjustment range 20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 100KW) Heat conversion efficiency ¡Ý95% Effective power ¡Ý98%(Can be customized according to user needs) working frequency 5~40KHz Main circuit structure Full bridge series resonance Control System The DSP-based high-speed automatic phase-locking tracking control system Application mode Open application platform monitor Programmable digital display start time <1S Instantaneous overcurrent protection time ¡Ü2US Power overload protection 130% instantaneous protection Soft start mode Fully electrically isolated soft start heating/stop mode RS485 communication Modbus RTU standard communication protocol Support PID adjustment power Identify 0-5V input voltage Support 0 ~ 1000 ?C load temperature detection Accuracy up to ¡À 1 ?C Adaptive coil parameters  Double 35 square line, length 35m, inductance 85 ~ 100uH Coil to load distance(Thermal insulation thickness) 20-25mm for circle, 15-20mm for the plane, 10-15mm for ellipse and within 10 mm for superellipse     100kW electromagnetic heating controller is specially designed for the application of pipeline heating and plane heating equipment, such as plastic machinery, food machinery, aluminum plastic machine, drum equipment, heating, boiler, oil, and natural gas transmission, etc. With stronger industry pertinence and better energy-saving effect, this product adopts the fifth generation DSP digital processing platform technology of our company, open application structure, wide inductance to adapt to the coil range, through the digital programmable control system, it can realize the special functions of different customers and different occasions, which brings great convenience to customers. It is an electromagnetic heating transformation project and supporting heating equipment Products. 1, Connect the power supply voltage of the cooling fan, but connect the 220V power when the fan is 220V, and connect the 380V power when the fan is 380V 2, Connected with cooling fan 220V / 380V (depending on the user, generally 380V) 3, When the external cooling fan is DC 24V, this interface is a switch that controls the 24V fan to work or stop. The two ends of the interface are actually the normally closed contact points of the relay output on the motherboard. 4, Dual AC 24V power supply (choose 4 or 5 when making half-bridge) 5, Dual AC 24V power supply (choose 4 or 5 when making half-bridge) 6, Single AC 16V power supply 7, Power indicator (red) 8, Work indicator light, flashing during standby, and always on (green) during work 9, External indicator light, led to the LED interface outside the chassis 10, The soft start interface is connected to the R / s interface outside the chassis (can be set to open or close work through F-20, factory default close work, open stop status 11, Finely adjust the power potentiometer. When there is a large deviation in power, this potentiometer can be adjusted appropriately. 12, 32-bit high-speed DSP processor 13, Externally connected programmable operating display 14, Isolated RS485 communication interface 15, External load temperature detection interface 1, with an accuracy of ¡À 1 ¡ã C (maximum 150 ¡ã C) single-channel, default 1 is used to measure external working temperature 16, External load temperature detection interface 2, with an accuracy of ¡À 1 ¡ã C (maximum 150 ¡ã C) 17,Multi-function input interface (set by F-20) (1)10K input for external connection potentiometer can adjust the power range from 20% to 100% (2)Externally connected PID input (0 ~ 5V) input Do infrared thermometer or thermocouple conversion voltage 0 ~ 5V input to achieve the display temperature and control power size (up to 1000?C can be measured and displayed) 18, Connect the high-frequency Mutual inductor and pay attention to the direction. If the direction is reversed, the power is very small 19, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 20, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 21, Connected to high voltage DC bus 22, IGBT temperature sensor interface 23, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 24, IGBT module drive (when doing half-bridge, choose 19, 20 or 23, 24) 25, Connected to high voltage DC bus 26,RS485 communication interface, connect A ,B 27, Externally connected K-type thermocouple 28, Externally connected 12V relay drives other required loads, synchronized with the fan start/stop of the machine FAQ Q: Is it easy for a new operator ? A: Yes, this device easy operate and you will love it! Q:Can I watch the heating test video before place order ? A: Yes, you can! Q: Do you have any Certification for entry EU market ? A: We have CE certification, you can chat with me and get it. Q:I see the price is including shipping cost. which Express you are use? A: Shipping to EU market, we usually use DHL HK Shipping to Russia Market, We usually use EMS Shipping to Mid-east, we usually use DHL HK or Aramex. We use all Express hopefully you can get goods within one week after place order and safety delivery. More other question, you can leave me message Contact Inquiry NowPlease enable JavaScript in your browser to complete this form.Please enable JavaScript in your browser to complete this form. Email Submit Product Name *Email *CompanyPhoneProductSubmitSubmit
