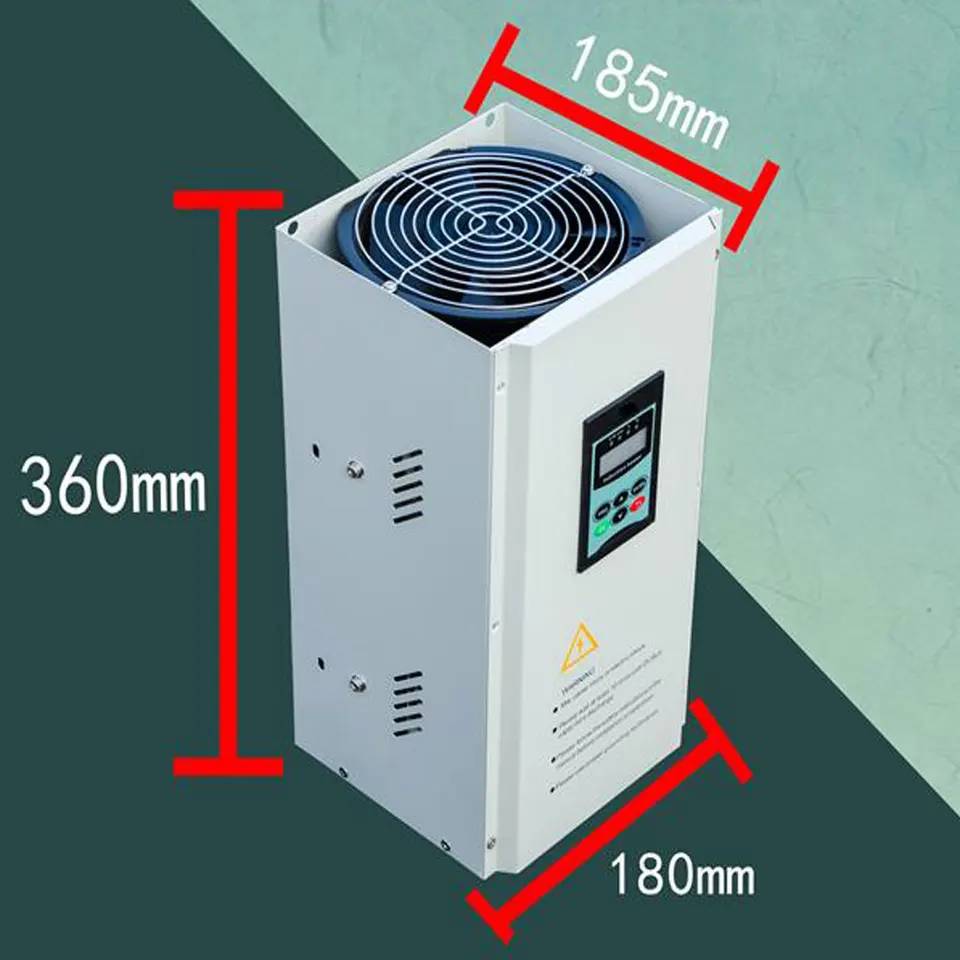

10KW 380V Electromagnetic Heating Controller Digital Three-Phase Half-Bridge Heating Equipment Induction Heater

Flameless 1000W Magnetic Induction Heater with 8 Coils 2 Wires Kits Car Repair Tool Bolt Remover Mini Induction Heater EU PlugUSD 160.99-212.99/piece Plastic Machine Manufacturer Supply 220V 6KW Induction Heating Machine For Plastic MoldingUSD 384.84/piece 3Kw 220V Electromagnetic Induction Heaters for Plastic Film MachineUSD 213.84/piece 10KW 10000W 3 phase 380V Industrial Electromagnetic Induction Heater with temperature meter for Plastic Processing MachineryUSD 586.00/piece Technical Parameters Item Technical Parameters Rated power 10KW       Three-phase 380V Rated input current 10KW (14-15A) Rated output current 10KW (50-60A) Rated voltage frequency AC 380V/50Hz Voltage adaptation range constant power output at 300 ~ 400V Adapt to ambient temperature -20?C~50?C Adapt to environmental humidity ¡Ü95% Power adjustment range 20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 10KW) Heat conversion efficiency ¡Ý95% Effective power ¡Ý98%(Can be customized according to user needs) working frequency 5~40KHz Main circuit structure Half-bridge series resonance Control System DSP-based high-speed automatic phase-locking tracking control system Application mode Open application platform monitor Programmable digital display start time <1S Instantaneous overcurrent protection time ¡Ü2US Power overload protection 130% instantaneous protection Soft start mode Fully electrically isolated soft start heating / stop mode Support PID adjustment power Identify 0-5V input voltage Support 0 ~ 150 ?C load temperature detection Accuracy up to ¡À 1 ?C Adaptive coil parameters 10KW  10 square line, length 30~35m, inductance 150 ~ 180uH Coil to load distance(Thermal insulation thickness) 20-25mm for circle, 15-20mm for plane, 10-15mm for ellipse and within 10 mm for super ellipse Half-bridge 10KW electromagnetic induction heater is a digital electromagnetic heating system developed by our company based on our fifth-generation DSP control platform. Compared with the previous electromagnetic heating controller, it adopts all-digital arithmetic processing, German Infineon magnetic drive and all-digital phase-locked tracking technology. It has the characteristics of high performance and stability, higher thermal efficiency, easy installation and low failure rate. It has a wide range of applications, beautiful appearance, convenient installation, simple debugging and reliable application. Can be widely used in heating, plastic machinery, rubber equipment, chemicals, molds, commercial induction cookers, various pipeline heating, flat heating crude oil transportation and other similar heating industries. FAQ Q: Is it easy for a new operator ? A: Yes, this device easy operate and you will love it! Q:Can I watch the heating test video before place order ? A: Yes, you can! Q: Do you have any Certification for entry EU market ? A: We have CE certification, you can chat with me and get it. Q:I see the price is including shipping cost. which Express you are use? A: Shipping to EU market, we usually use DHL HK Shipping to Russia Market, We usually use EMS Shipping to Mid-east, we usually use DHL HK or Aramex. We use all Express hopefully you can get goods within one week after place order and safety delivery. More other question, you can leave me message Contact Inquiry NowPlease enable JavaScript in your browser to complete this form.Please enable JavaScript in your browser to complete this form.Name *Email *CompanyPhoneProduct Submit Phone Company SubmitSubmit
