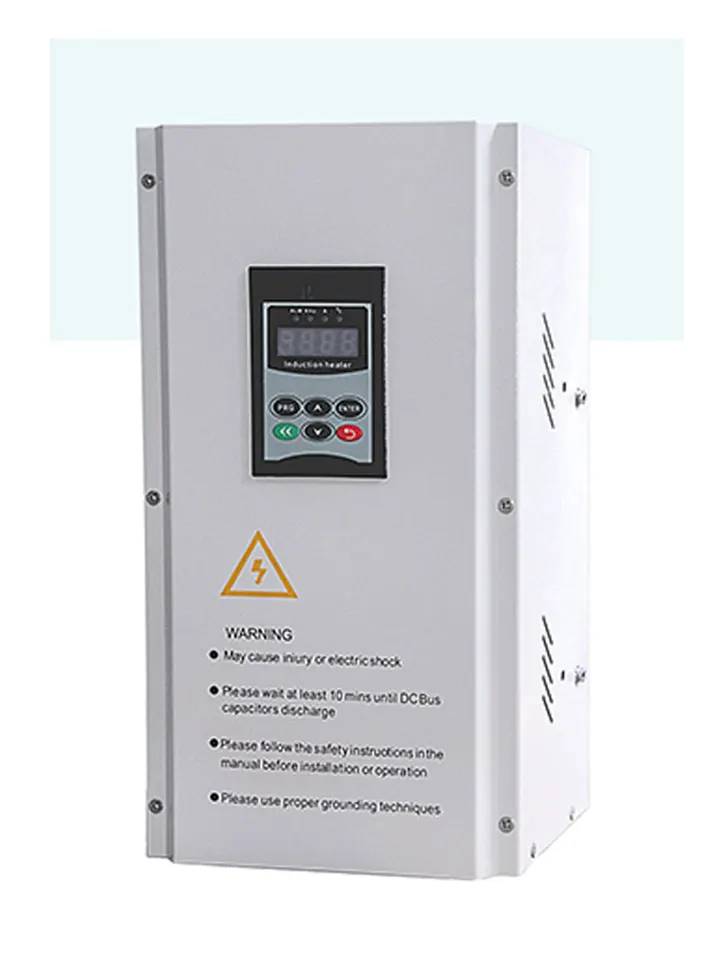

15KW high frequency igbt driver board magnetic induction heater control kit and parts for industrial heating

Technical Parameters Item Technical Parameters Rated power 15KW        Three-phase 380V Rated input current 15KW (20-22A) Rated output current 15KW (60-70A) Rated voltage frequency AC 380V/50Hz Voltage adaptation range constant power output at 300 ~ 400V Adapt to ambient temperature -20?C~50?C Adapt to environmental humidity ¡Ü95% Power adjustment range 20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 15KW) Heat conversion efficiency ¡Ý95% Effective power ¡Ý98%(Can be customized according to user needs) working frequency 5~40KHz Main circuit structure Half-bridge series resonance Control System DSP-based high-speed automatic phase-locking tracking control system Application mode Open application platform monitor Programmable digital display start time <1S Instantaneous overcurrent protection time ¡Ü2US Power overload protection 130% instantaneous protection Soft start mode Fully electrically isolated soft start heating / stop mode Support PID adjustment power Identify 0-5V input voltage Support 0 ~ 150 ?C load temperature detection Accuracy up to ¡À 1 ?C Adaptive coil parameters 15KW  16 square line, length 25~30m, inductance 110 ~ 140uH Coil to load distance(Thermal insulation thickness) 20-25mm for circle, 15-20mm for plane, 10-15mm for ellipse and within 10 mm for super ellipse
