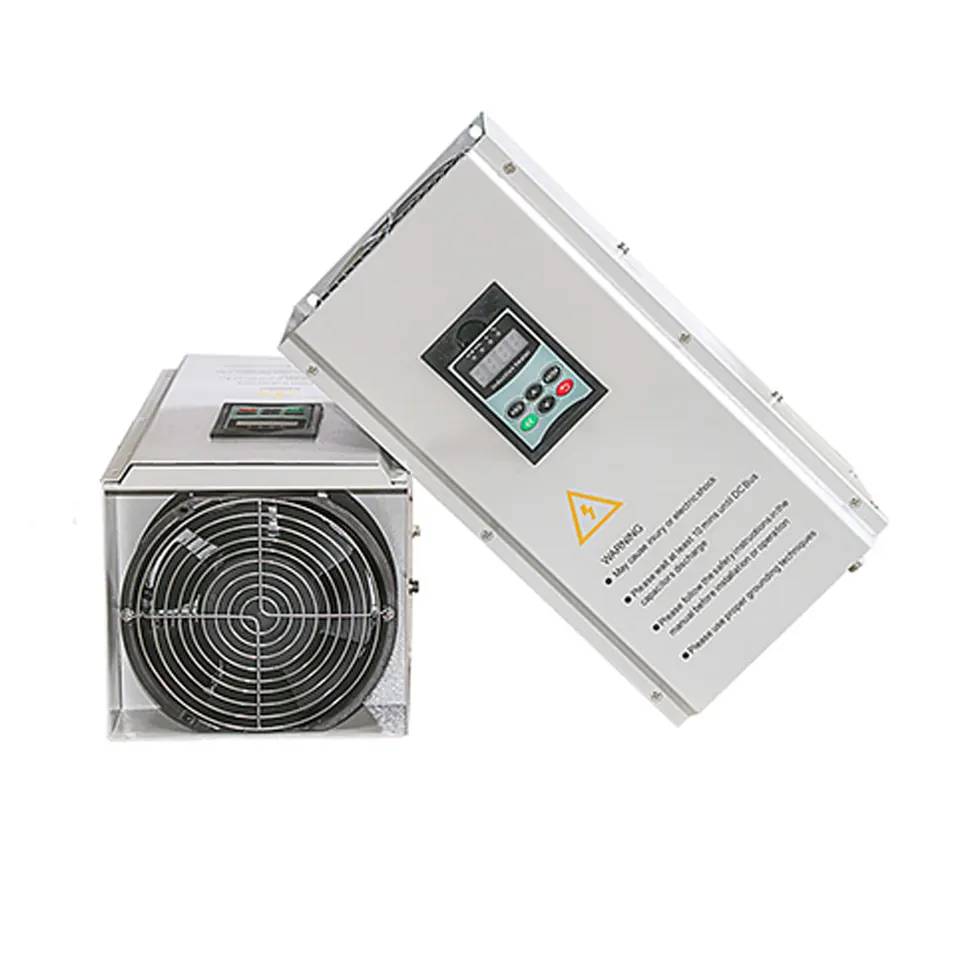

1PC 220V 5KW Electromagnetic Induction Heater Equipment Apparatus for Plastic Extruder Barrel

Flameless 1000W Magnetic Induction Heater with 8 Coils 2 Wires Kits Car Repair Tool Bolt Remover Mini Induction Heater EU PlugUSD 150.99-212.99/piece Plastic Machine Manufacturer Supply 220V 6KW Induction Heating Machine For Plastic MoldingUSD 384.84/piece 3Kw 220V Electromagnetic Induction Heaters for Plastic Film MachineUSD 213.84/piece 10KW 10000W 3 phase 380V Industrial Electromagnetic Induction Heater with temperature meter for Plastic Processing MachineryUSD 586.00/piece     Technical Parameters   ? Item Technical Parameters rated power Single-phase  Rated input current 5KW  (20-22A)                    Rated output current 5KW  (20-30A)                Rated voltage frequency AC 220V/50Hz Voltage adaptation range 100V ~ 260V, constant power output at 210 ~ 260V Adapt to ambient temperature -20?C~50?C Adapt to environmental humidity ¡Ü95% Power adjustment range 20% ~ 100% stepless adjustment(That is: adjustment between 0.5 ~ 5KW) Heat conversion efficiency ¡Ý95% Effective power ¡Ý98%(Can be customized according to user needs) working frequency 5~40KHz Main circuit structure Half-bridge series resonance Control System DSP-based high-speed automatic phase-locking tracking control system Application mode Open application platform monitor Programmable digital display start time <1S Instantaneous overcurrent protection time ¡Ü2US Power overload protection 130% instantaneous protection Soft start mode Fully electrically isolated soft start heating / stop mode Support PID adjustment power Identify 0-5V input voltage Support 0 ~ 150 ?C load temperature detection Accuracy up to ¡À 1 ?C Adaptive coil parameters 5KW  10 square line, length 15m, inductance 75uH Coil to load distance(Thermal insulation thickness) 20-25mm for circle, 15-20mm for plane, 10-15mm for ellipse and within 10 mm for super ellipse rated power Single-phase 5KW   5KW 220V digital electromagnetic heating controller is a multi-purpose high-efficiency heating and energy-saving product. It has significant power saving effects, fast heating speed, high thermal efficiency, and lower production environment temperature. This product adopts the company’s fifth-generation digital processing platform technology, an embedded 32-bit processing system, and full digital phase-locked tracking processing. The motherboard has rich interfaces and supports the standard modbus RTU communication protocol, which can easily realize touch screen man-machine dialogue and remote control. In addition, it has the advantages of fast tracking speed, high precision, strong adjustability, strong coil adaptability, easy installation, and simple debugging. It can be widely used in high-efficiency heating equipment such as plastic machinery, food machinery, and commercial induction cookers. FAQ Q: Is it easy for a new operator ? A: Yes, this device easy operate and you will love it! Q:Can I watch the heating test video before place order ? A: Yes, you can! Inquiry NowPlease enable JavaScript in your browser to complete this form.Please enable JavaScript in your browser to complete this form.Name *Email *CompanyPhone Company Layout Submit ProductSubmitSubmit
