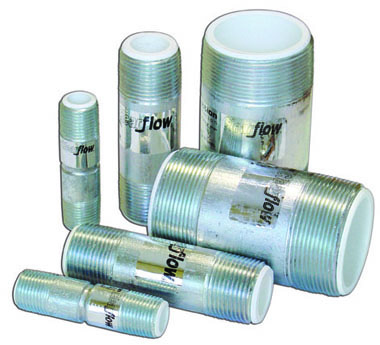

CLEAR FLOW – Dielectric Waterway Fittings

Description CLEAR FLOW – Dielectric Waterway Fittings Clearflow® fittings protect your plumbing system through an exclusive steel-to-plastic design that establishes an effective dielectric waterway. Clearflow® fittings separate dissimilar metals in the electrolyte (waterway) eliminating the local galvanic cell. In addition, Clearflow‘s® metal-to-metal joint design maintains external electrical continuity, thereby preventing stray current corrosion. This feature becomes critical when stray current is present due to intentional or non-intentional grounding of direct current (DC) sources, e.g. phone systems and appliances. Certifications/Listings/Approvals:  Clearflow® fittings are designed to meet the requirements of ASTM standard F-1545 for continuous use at temperatures up to 110  °C and for pressures up to up to 20 bar .  These fittings achieve a dielectric waterway in all potable water and appropriate HVAC applications.  Clearflow® is listed by IAPMO/UPC and SBCCI PST & ESI. Test results comparing Clearflow® fittings with several other connections are provided below Features: Allows for Metal to Metal electrical continuity Protects your plumbing system Several Install Options Available sizes:  1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″ NOT suitable for natural gas installations  Technical Brochure: Download Installation Instructions: Download Certifications: Download
