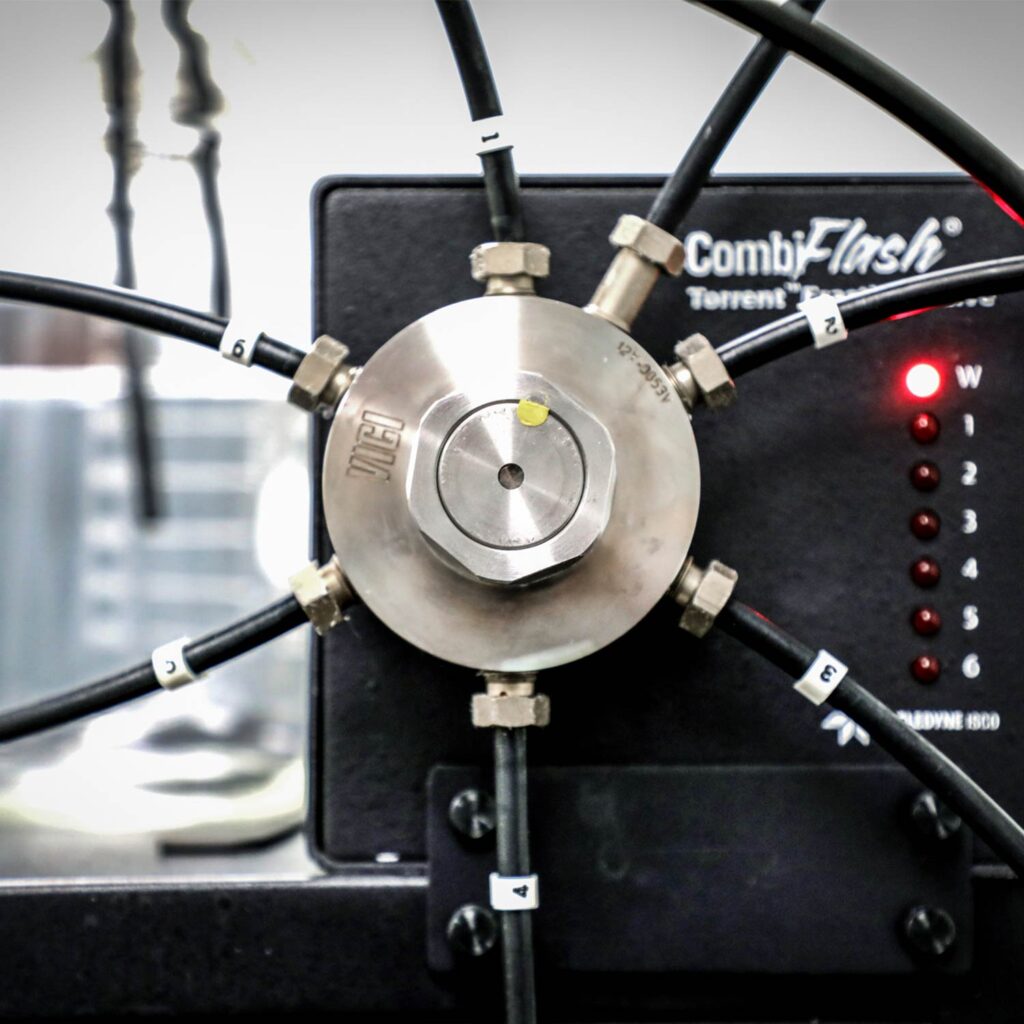

Teledyne CombiFlash Torrent Module

DescriptionSample Size0.5 to 600 gramsRediSep Rf Column Sizes80 grams to 3 kilogramsFlow rate50 – 1000 mL/minMaximum Pressure100 psi (6.89 bar)Detection200 – 400 nm (200 – 800 nm optional) with single, dual, or All wavelength collection. Accepts external detector inputGradientBinary, high pressure solvent mixing with linear, step, or isocratic capability. Two solvent inletsGradient AccuracySample injectionAutomated injection with options of solid load cartridges, liquid load, or direct injectionController10.4 in (26.7 cm) touchscreenSoftwareOn-screen method development and control with PeakTrak softwareFraction CollectionUp to fThe fraction collectors, fractionation valve, or manual collectionSolvent ManagementPatented, active level sensing for inlet and waste containersModule Dimensions (W x D x H)18.5” x 17.9” x 28.1” (47 x 43.5 x 71.4 cm)Module Weight65 lbs (29.5 kg)Operating Voltage100 VAC 50 Hz, 117 VAC 60 Hz, 234 VAC 50 HzSafety & Sample SecurityStatic-dissipative tubing throughout, vapor sensor for internal leak detection, overpressure sensor, active solvent and waste level sensing, audible alarm when user intervention is requiredCertificationsCESample Size0.5 to 600 gramsRediSep Rf Column Sizes80 grams to 3 kilogramsFlow rate50 – 1000 mL/minMaximum Pressure100 psi (6.89 bar)Detection200 – 400 nm (200 – 800 nm optional) with single, dual, or All wavelength collection. Accepts external detector inputGradientBinary, high pressure solvent mixing with linear, step, or isocratic capability. Two solvent inletsGradient AccuracySample injectionAutomated injection with options of solid load cartridges, liquid load, or direct injectionController10.4 in (26.7 cm) touchscreenSoftwareOn-screen method development and control with PeakTrak softwareFraction CollectionUp to fThe fraction collectors, fractionation valve, or manual collectionSolvent ManagementPatented, active level sensing for inlet and waste containersModule Dimensions (W x D x H)18.5” x 17.9” x 28.1” (47 x 43.5 x 71.4 cm)Module Weight65 lbs (29.5 kg)Operating Voltage100 VAC 50 Hz, 117 VAC 60 Hz, 234 VAC 50 HzSafety & Sample SecurityStatic-dissipative tubing throughout, vapor sensor for internal leak detection, overpressure sensor, active solvent and waste level sensing, audible alarm when user intervention is requiredCertificationsCEReliable pumps that can produce an accurate binary gradient up to 1 L/minPeak cutting options via slope, threshold or time as well as multiple or single wavelength detectionThe Foxy R2 fraction collector has multiple rack configurations and can be daisy-chained to collect hundreds of fractionsFractionation valve allows for targeted compound collection in conjunction with PeakTrak softwareAutomated six-port injection valve which enables true walk-away automation of column equilibration, sample loading, purification, column and cartridge air purge, and post-run cleaningPatented level-sensing ensures adequate solvent for purification and prevents wasteError-free RFID detection recognizes RediSep columns and automatically selects an optimized purification method
