DigiVac Portable High Vacuum, Active Gauge, and Capacitance Manometer Controller

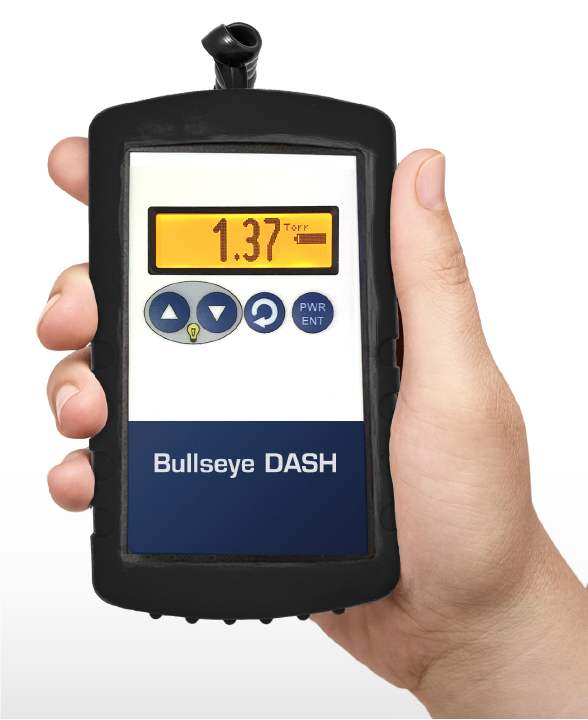

DescriptionThe DigiVac Bullseye DASH is the first portable high vacuum display controller and capacitance manometer gauge in the world; it also powers and displays CM readings and contains patented vacuum graphing technology.Bullseye DASH is the 1st Portable High Vacuum, Active Gauge, and Capacitance Manometer Controller that both powers and displays the vacuum readings of capacitance manometers. Excellent troubleshooting vacuum gauge for powering and displaying capacitance manometer readings around the lab or on the go in the field.Portable and battery operated, great for confirming readings of multiple capacitance manometers on a systemRugged design of gauge with solid state electronics for durability and long lifespan with proper maintenanceSensors supported include: Inficon: Porter, SKY;  MKS: AA01, 722B, 730B;  KJLC: Carbon, ACG (Note: Capacitance Manometer sold separately)What the Bullseye DASH Stands For:D – Direct Measurement of Capacitance ManometerA – Active MonitoringS – Scientific ApplicationsH – Historical Data Tracking, High (Vacuum) ApplicationsR&D temporary test system measurement that requires the direct measurement accuracy of Capacitance ManometersFor operators wanting to double check their instruments that are installed on tools and vacuum systemsUse as a field calibration standard for thermal gauges installed in systems Portable and PreciseIncludes a powerful magnet and kickstand to enable hands-free operationSolid state electronics built into a handheld gauge that operates using AA batteries (4) and lasts 20 hours when used with a porter CM or 7 hours with a standard ambient capacitance manometerVersatility with 12 different measuring units (micron, Torr, Inches of Hg, kPa, Inches of H20, millitorr, mbar, Pa, PSIA, mm of Hg, bar, and mm of H2O)This Portable Capacitance Manometer has the option to be powered with a Micro-USB power supplyCalibrated under actual vacuum against a NIST standard (NIST certification and documentation is optional) Graphing and AnalysisPatented vacuum graphing displays vacuum and time dataVisual graphing right on the display that identifies current system statusVacuum Analytics to quickly identify vacuum pressure trendsGraphical display for quick determination of vacuum levelBluetooth Version of the Bullseye DASH is available for Remote MonitoringData Sheet
